Compleately new appereance. Compact structure, strong practicality,light in weight and easy to move.
More stable wire feeding by equipping with
measuring feedback motor and double
drive single pressure handle design.

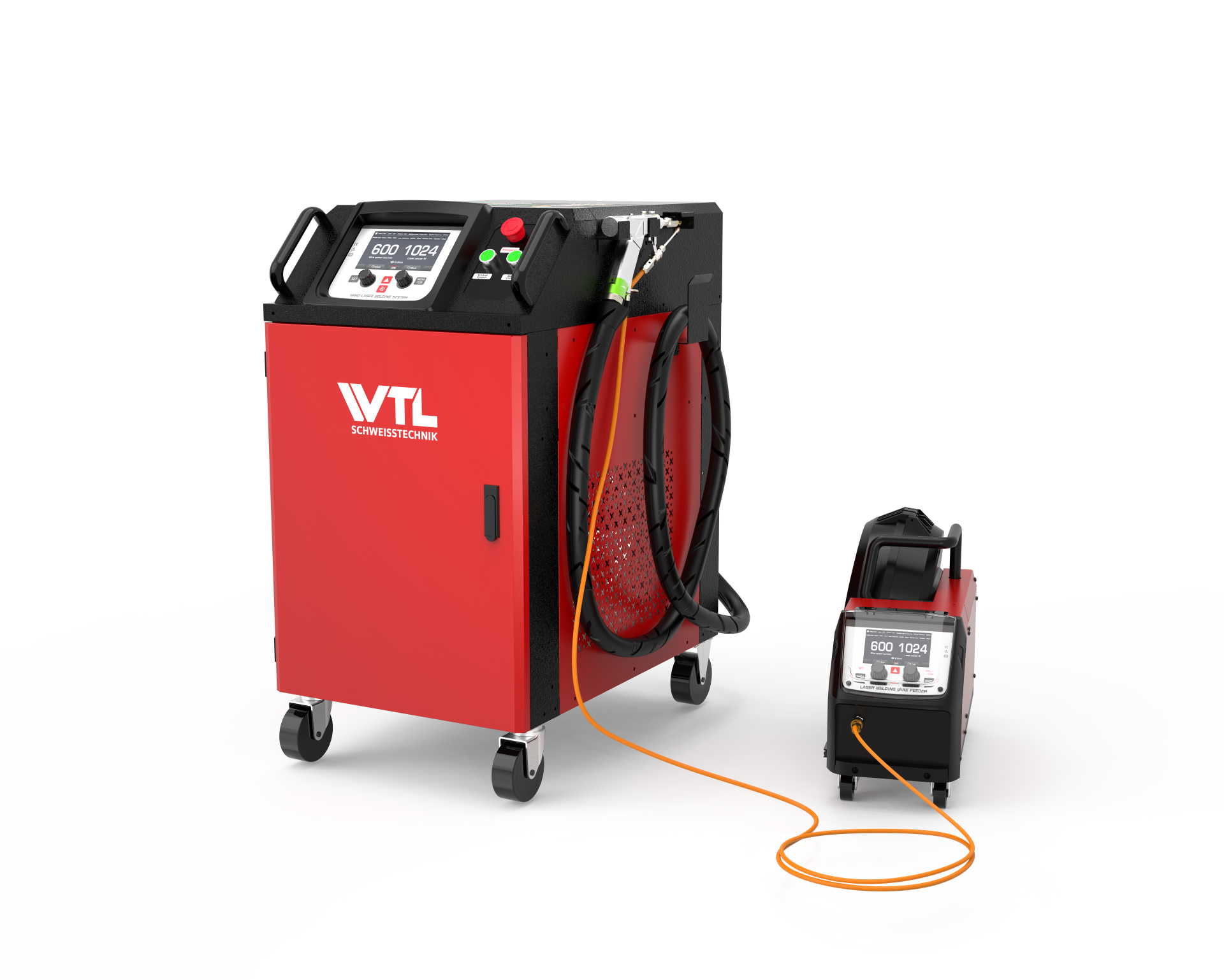

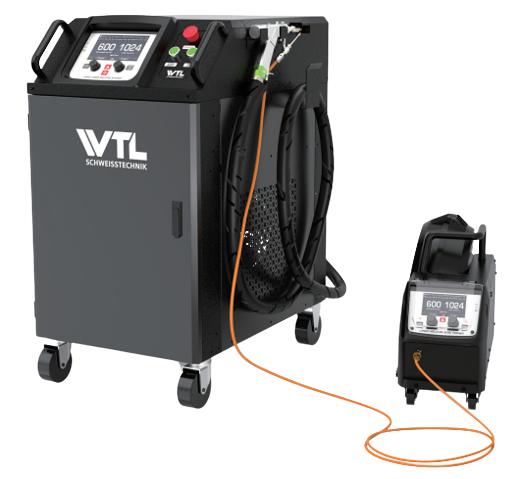

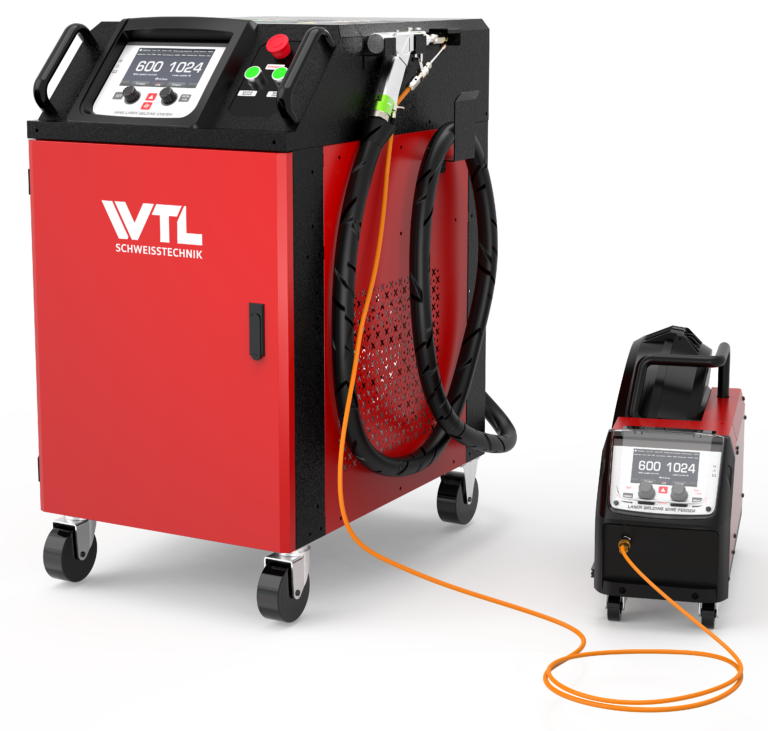

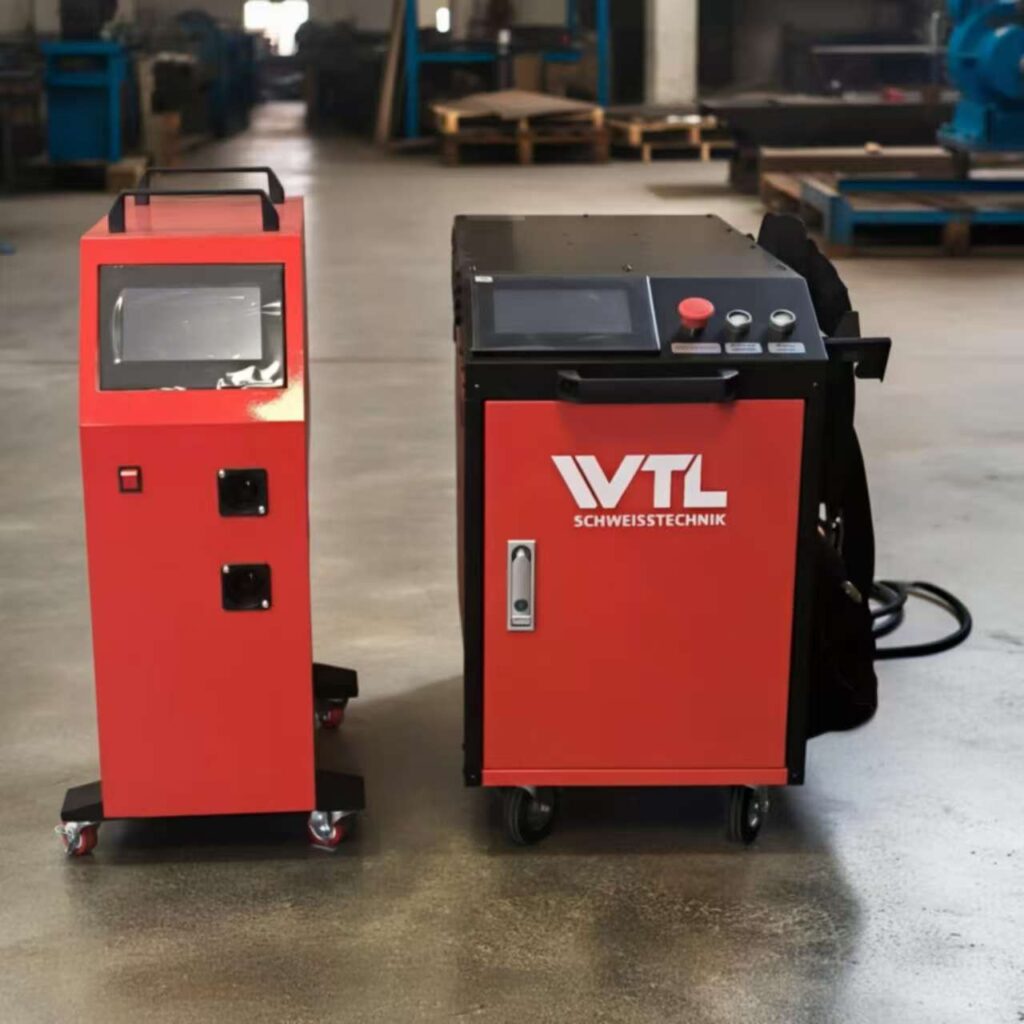

Laser welder (Hand-held)
Parameter guidance
Built-in expert synergic parameters, including four materials of stainless steel, carbon steel,aluminum and galva- nized sheet, with thick need from 0.6mm to 6mm.
Energy saving
Built-in expert synergic parameters, including four materials of stainless steel, carbon steel,aluminum and galva- nized sheet, with thick need from 0.6mm to 6mm.
Interconnected operation
The wire feeder communicates with the power source through 485 communication protocol and 10m communication lines. The power source parameters can be changed through the wire feeder interface
See it in action
Enormous advantages
Compared to TIG welding, laser welding is up to 4x faster
Convince yourself of hand-guided laser welding
- Low material distortion
- Cost-efficient
- Clear interface
- Small and mobile
- Clean welding result
- Easy to use
Experience now. Best laser welding
Frequently asked questions
The Hand-held Laser Welder is designed to work with a variety of materials, including stainless steel, carbon steel, aluminum, and galvanized sheet. It can handle materials with a thickness ranging from 0.6mm to 6mm, making it a versatile tool for different welding applications.
The Hand-held Laser Welder incorporates a 976nm pumping scheme, which boasts a photoelectric conversion efficiency of more than 42%. In comparison, traditional 915nm pumps typically achieve a photoelectric conversion efficiency of about 30%. This higher efficiency translates to significant electricity cost savings, ranging from USD 1,100 to USD 3,000 per year for 1kw-3kw lasers, over a 5-year cycle. This feature makes the Hand-held Laser Welder not only cost-effective but also environmentally friendly.
Yes, the Hand-held Laser Welder offers user-friendly controls and adjustability. It comes equipped with a 1.7” LCD display and an interactive interface that allows you to easily set parameters, adjust wire feed settings, and monitor the welding process. Additionally, it features high-precision wire feeding motors with a single pressing handle design and encoder-based speed regulation, ensuring stable and precise wire feeding for your welding needs.
